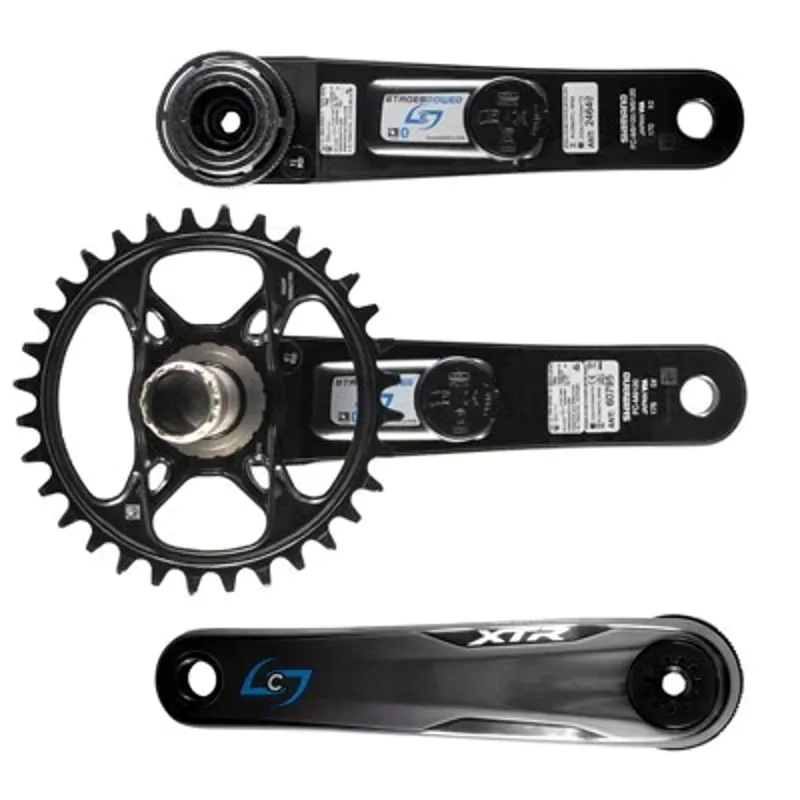

The Stages Power meter for Shimano´s XTR M9100 crank set is built on to a Shimano XTR M9100 crank set, placed on both the drive and non-drive side of the crank in order to independently measure a rider's left and right legs.
Specifications:
- Accuracy: +/- 1,5% accurate in all conditions
- Power meter housing: low profile design, with robust door interface. Tool free battery replacement on the left arm and phillips head screw access on the drive side
- Weight: Only adds 35g to base crank set
- Battery life: 175+ hours (coin cell: CR2032) when used as a single sided meter
- Power range (Watts): 0 – 2500
- Cadence range (rpm): 20 – 220
- Water resistance rating: IPX7
Tour Proven
Stages Power has carried riders to three consecutive Tour de France victories, plus many more world and national championships. If you believe racing provides the world’’s best product proving ground, then Stages Power is proven as the world’’s best power meter.
Active Temperature Compensation as standard equipment
Consistency of measurement is the most important feature of a power meter. Stages Power was the first meter to make temperature compensation an automatic process ensuring accurate readings no matter the environmental conditions. ATC is the key reason a rider can trust data from Stages Power in all conditions.
Individual meter calibration for the most accurate results
Each Stages Power meter is calibrated individually to ensure a +/- 1,5% accuracy level, which is an industry best for non-scientific power meters.
Stages Power R drive-side meter for added compatibility or upgrading an existing Stages Power L meter to Stages Power LR
While not widespread there are some key bicycle models that are not compatibile with the non-drive crank arm based Stages Power meter because of interference with the power meter housing, for example Cervelo's P5 and many bikes with chainstay mounted brake calipers or Boost-standard. Stages Power R offers increased compatibility with these models as well as the ability to upgrade existing Stages Power L power meters to Stages Power LR (dual) meter systems.
Options:
- Crank length: 170mm, 175mm
- Chainring 32T
Additional Features:
- Active temperature compensation
- Accelerometer based cadence measurement or the option to use a Hall-Effect based system with magnet (coming soon)
- Wirelessly upgradable firmware
- LED indicator for visual indication of battery levels and zero reset confirmation without connected app or headunit
- Updated accelerometer and addition of gyroscope for improved cadence resolution
- NFC tap to pair for some phones and devices
- Upgraded BLE and ANT+ radios offer a 6x improvement of data transmission strength
Compatibility:
- Crank Compatibility: Compatible with Shimano XTR M9100 and XTR M9120 drivetrains.
- Frame Compatibility: Most frames, see fit guide in our Support section
- Software Compatibility: Stages Link, Training Peaks, Strava, Garmin Training Center and others
- Device Compatibility: ANT+, Bluetooth Smart Ready
In the Box:
- Non-drive-side power meter
- Drive-side power meter
- Shimano chainring
- 2x high quality CR2032 coin cell battery
- Lifetime access to Stages Link for power meter management and firmware upgrade
- 2 months free access to Stages Link premium training and coaching features
- Product Identification Card with Serial Number and ANT+ ID Number
- User Guide
